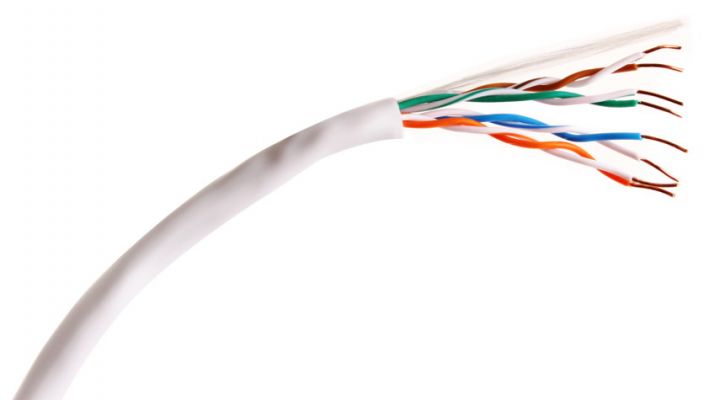

GETFORT KAT.5E U/UTP PVC


Description

The teleinformation cable (twisted pair) of GetFort kat.5e is intended for the construction of professional teleinformation or telecommunication systems in which the frequency band up to 100MHz is used. The cables are suitable for data transmission, sound and TV image with binary bandwidth up to 1 Gb / s. The cable is used to build the so-called structured cabling systems inside buildings. This cable is also ideally suited for the construction of CCTV systems - CCTV thanks to the excellent properties of video signal transmission from cameras.


Building:

    Veins: single-wire round made of soft electrolytic copper
    Insulation: special polyolefin blend
    Core insulation colors: green, blue, brown, orange - twisted in a pair with a white wire with the corresponding colored longitudinal stripe
    Center: four pairs of veins twisted into a resort
    Outer shell: PVC PVC
    Coating color: gray RAL 9003

Technical data:

    category 5e U / UTP
    cable construction: 4x2
    wire thickness: 0.45mm
    execution of wires: copper wire [Cu]
    core insulation: HDPE 0.92mm
    Coating thickness: 0.5mm
    outer diameter of the coating: 5.3 mm PVC
    impedance in the range 1-100MHz: 100 Ω
    max. resistance in the range 1-100MHz: 9.5 (Ω / 100m)
    NVP: 68%
    Delay Skew (ns / 100m): ≤45
    color: RAL 9003

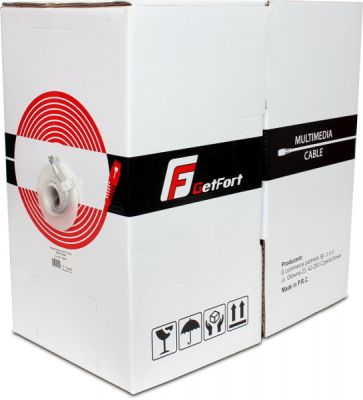

    quantity in the package: 305m
