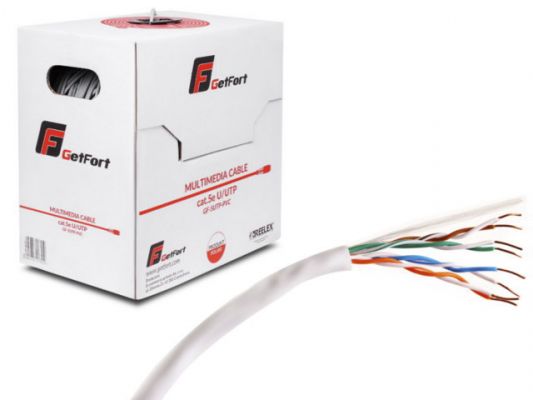

GETFORT PREMIUM CAT.5E U/UTP PVC 200HZ
Features
| Model | GF-5UTP-PVC |
| Application | Inside |
| Categories | 5E |
| Construction | U/UTP |
| Shell | PVC |
| Type veins | CU |
| Wire diameter | 24AWG 0,5mm |
| Frequency band | 200MHz |
| Outer diameter | 4,8mm |
| Weight disc | 28kg |
Description
The data communications cable (twisted-pair) category 5e GetFort premium are designed to build professional data communications systems or telecommunications that use a frequency range up to 200MHz. Cables suitable for the transmission of data, sound and video television having a capacity of binary data to 1Gb / s. The cable used for the construction of the so-called. structured cabling systems within buildings according to standard EN 50173-1, EN 50288-3-1, ISO / IEC 11801 2 ed. , IEC 61156-5, ANSI / TIA 568-C.2. The cable also ideally suited for the construction of CCTV systems - CCTV on its excellent transmission characteristics of video cameras.

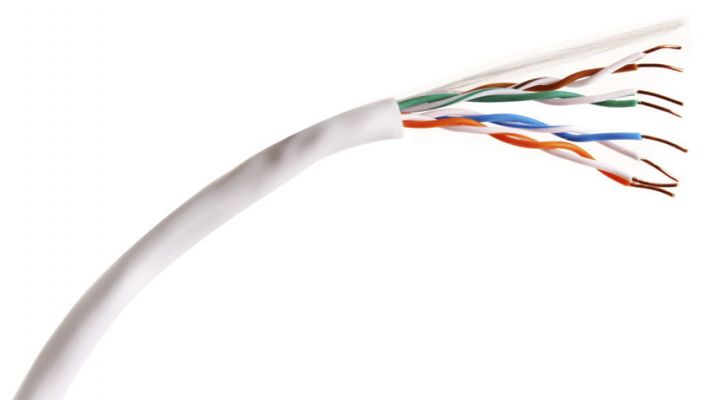

| Temperature range | During operation -30°C do +70°C When laying -10°C do +50°C |
| Minimum bending radius | 4xØd - outer diameter of the cable |
| Resistance of wires / steam temperature. 20°C (max) | 190 Ω/km |
| Insulation resistance (min) | 5 GΩxkm |
| Resistance unbalance in hand | ≤ 2% |
| Effective capacitance of any pair of the 1 kHz | 50 ± 5 nF/km |
| The asymmetry in the capacity of the transmission path with respect to ground at 1kHz (max) | 1600 pF/km |
| Operating voltage | 150V |
| Voltage test | AC 50 Hz - 700 V AC DC 1000 V DC |
| Impedance | 100 ± 5 Ω |
| Ppeed of propagation NVP | 69 % |
| Return loss in the frequency pairs dB (min) | f = 4÷10 MHz - 20+5lg(f) f = 10÷20 MHz - 25 f = 20÷200 MHz - 25-7lg(f/20) |
Constructions | |
| Veins | Singlewire round of soft electrolytic copper |
| Insulation | A special blend of polyolefin |
| Color core insulation | Green, blue, brown, orange - twisted pair with white vein with corresponding colored stripe lengthwise |
| Center | Four pairs of twisted wires in the center |
| Outer shell | Polyvinyl chloride PVC tire |
| Sheath color | Gray RAL 7035 for PVC coating |

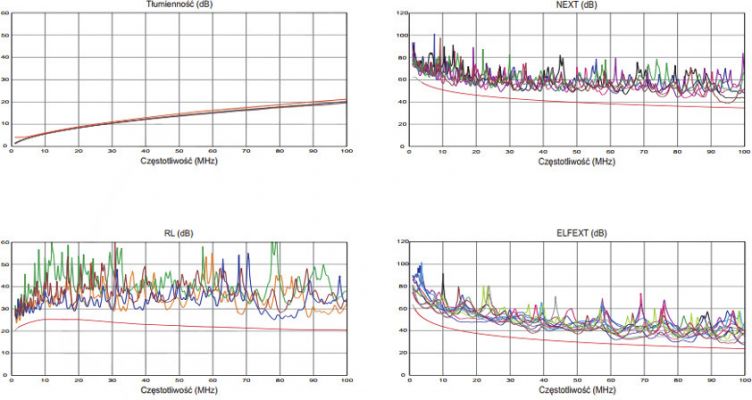

Transmission parameters | ||||||||||||||||
| Frequency Mhz | 1 | 4 | 10 | 16 | 20 | 30 | 45 | 60 | 80 | 100 | 120 | 130 | 155 | 175 | 200 | |
| Attenuation ≤ dB/100m | 2,1 | 4,0 | 6,3 | 8,0 | 9,0 | 11,2 | 13,9 | 16,2 | 18,9 | 21,3 | 23,6 | 24,7 | 27,2 | 29,2 | 31,5 | |
| NEXT ≥ dB/100m | 65,3 | 56,3 | 50,3 | 47,2 | 45,8 | 43,1 | 40,5 | 38,6 | 36,7 | 35,3 | 34,1 | 33,6 | 32,4 | 31,6 | 30,8 | |
| PS NEXT ≥ dB/100m | 62,3 | 53,3 | 47,3 | 44,2 | 42,8 | 40,1 | 37,5 | 35,6 | 33,8 | 32,3 | 31,1 | 30,6 | 29,5 | 28,6 | 27,8 | |
| ELFEXT ≥ dB/100m | 63,8 | 51,8 | 43,8 | 39,7 | 37,8 | 34,3 | 30,7 | 28,2 | 25,7 | 23,8 | 22,2 | 21,5 | 20,0 | 19,0 | 17,8 | |
| PS ELFEXT ≥ dB/100m | 60,8 | 48,8 | 40,8 | 36,7 | 34,8 | 31,3 | 27,7 | 25,2 | 22,7 | 20,8 | 19,2 | 18,5 | 17,0 | 16,0 | 14,8 | |
| RL ≥ dB | 20,0 | 23,0 | 25,0 | 25,0 | 25,0 | 23,8 | 22,5 | 21,7 | 20,8 | 20,1 | 19,5 | 19,3 | 18,8 | 18,4 | 18,0 | |
