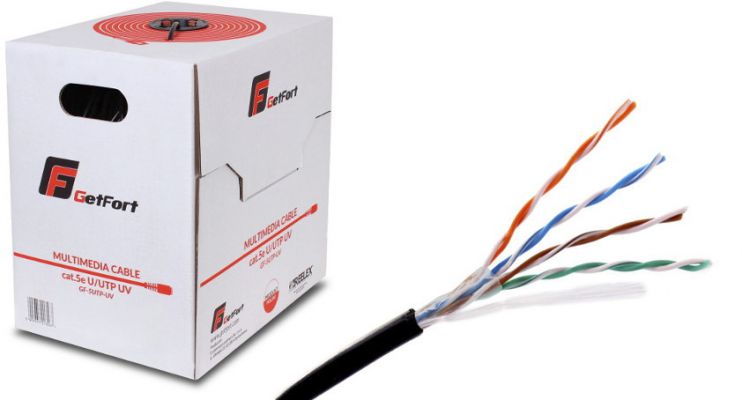

GETFORT KAT.5E U/UTP UV DRY
Features
| Model | GF-5UTP-UV |
| Application | Outdoor |
| Categories | 5E |
| Construction | U/UTP |
| Shell | UV |
| Type veins | CU |
| Wire diameter | 24AWG 0,5mm |
| Frequency band | 200MHz |
| Outer diameter | 5mm |
| Weight disc | 25kg |
Description
The data communications cable (twisted pair) GetFort is used in the construction of professional IT systems or telecommunications. Suitable for installation on the outside of the building does not require additional guards or conduit connector. Ideally suited for installation in computer networks, telephone systems, CCTV on its excellent transmission properties of the video signal from the cameras. Ideal for installations where there is no interference from outside ektromagnetyczne. The cable has an outer shell UV and meets the requirements of structured cabling ISO / IEC 11801, EN 50173, EIA / TIA 568-B.2. Wires in this category are intended to operate at frequencies up to 155MHz with a maximum data transfer to 1Gb / s
Veins

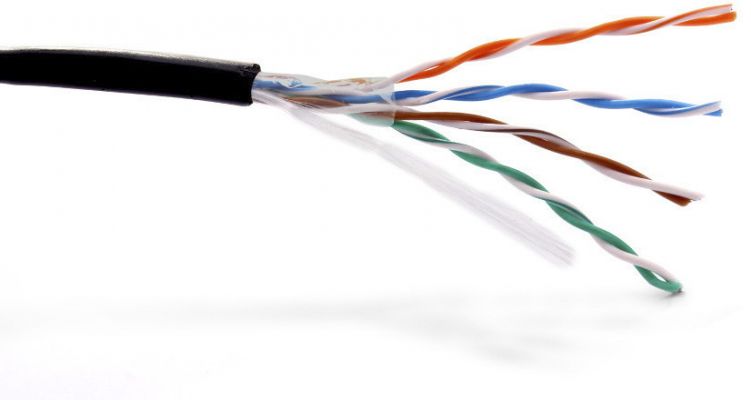

| Temperature range | Operating -30°C do +80°C when laying -10°C do +50°C |
| The minimum bending radius | 6xØd - the outer diameter of the cable |
| Resistance of wires / pairs at . 20°C (max) | 190 Ω/km |
| Insulation resistance (min) | 5 GΩxkm |
| Resistance unbalance in hand | ≤ 2% |
| Effective capacitance of any pair of the 1 kHz | 50 ± 5 nF/km |
| Asymmetry capacity transmission paths relative to the ground at 1 kHz (max) | 1600 pF/km |
| Operating voltage | 150 V |
| Voltage test | AC 50 Hz - 700 V AC DC - 1000 V DC |
| Impedance | 100 ± 5 Ω |
| The speed of propagation NVP | 69% |
| Return loss in the frequency pairs dB (min) | f = 4÷10 MHz - 20+5lg(f) f = 10÷20 MHz - 25 f = 20÷200 MHz - 25-7lg(f/20) |
| Constructions | |
| Veins | singlewire round of soft electrolytic copper |
| Insulation | a special blend of polyolefin |
| Color core insulation | green, blue, brown, orange - twisted pair with white vein with corresponding colored stripe lengthwise |
| Center | four pairs of twisted wires in the center |
| Outer shell | polyethylene coating PE |
| Sheath color | Black |

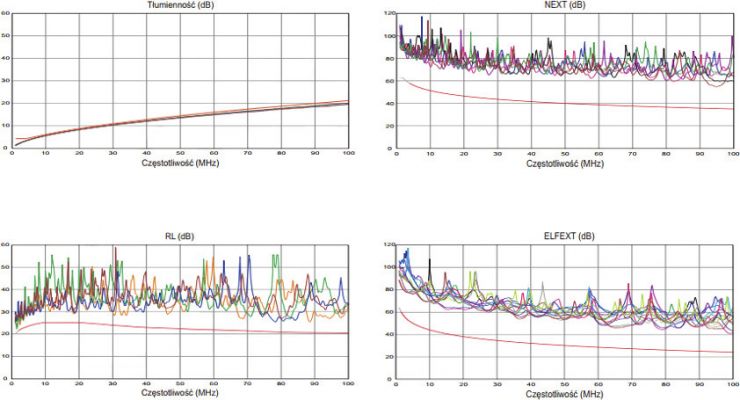

| Transmission parameters | ||||||||||||||||
| FrequencyMhz | 1 | 4 | 10 | 16 | 20 | 30 | 45 | 60 | 80 | 100 | 120 | 130 | 155 | 175 | 200 | |
| Attenuation ≤ dB/100m | 2,1 | 4,0 | 6,3 | 8,0 | 9,0 | 11,2 | 13,9 | 16,2 | 18,9 | 21,3 | 23,6 | 24,7 | 27,2 | 29,2 | 31,5 | |
| NEXT ≥ dB/100m | 65,3 | 56,3 | 50,3 | 47,2 | 45,8 | 43,1 | 40,5 | 38,6 | 36,7 | 35,3 | 34,1 | 33,6 | 32,4 | 31,6 | 30,8 | |
| PS NEXT ≥ dB/100m | 62,3 | 53,3 | 47,3 | 44,2 | 42,8 | 40,1 | 37,5 | 35,6 | 33,8 | 32,3 | 31,1 | 30,6 | 29,5 | 28,6 | 27,8 | |
| ELFEXT ≥ dB/100m | 63,8 | 51,8 | 43,8 | 39,7 | 37,8 | 34,3 | 30,7 | 28,2 | 25,7 | 23,8 | 22,2 | 21,5 | 20,0 | 19,0 | 17,8 | |
| PS ELFEXT ≥ dB/100m | 60,8 | 48,8 | 40,8 | 36,7 | 34,8 | 31,3 | 27,7 | 25,2 | 22,7 | 20,8 | 19,2 | 18,5 | 17,0 | 16,0 | 14,8 | |
| RL ≥ dB | 20,0 | 23,0 | 25,0 | 25,0 | 25,0 | 23,8 | 22,5 | 21,7 | 20,8 | 20,1 | 19,5 | 19,3 | 18,8 | 18,4 | 18,0 | |
