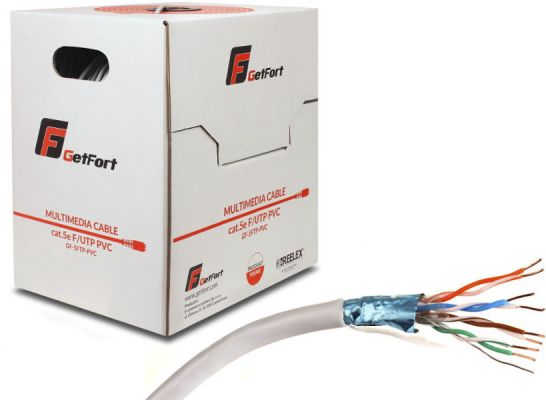

GETFORT KAT.5E F/UTP PVC
Features
| Model | GF-5FTP-PVC |
| Application | Inside |
| Categories | 5E |
| Construction | F/UTP |
| Shell | PVC |
| Type veins | CU |
| Wire diameter | 24AWG 0,51mm |
| Frequency band | 200MHz |
| Shield | Aluminum foil |
| Outer diameter | 6,3mm |
| Weight disc | 29kg |
Description
The data communications cable (twisted pair) GetFort is used in the construction of professional IT systems or telecommunication making connections between distribution points multimedia signals and slots connecting users inside buildings. FTP cable 4x2x24AWG (8 Twisted pair) category 5e (shielded) is ideally suited for installation in computer networks, telephone, subject to electromagnetic interference. The cable also ideally suited for the construction of CCTV systems - CCTV on its excellent transmission characteristics of video cameras.
The use of the screen minimizes the risk of interference that may occur, eg. When placed in a common cable tray cable current. It has an outer coating of PVC. Wires in this category are intended to operate at frequencies up to 155MHz with a maximum data transfer to 1Gb / s
| Cat. 5e FTP | |

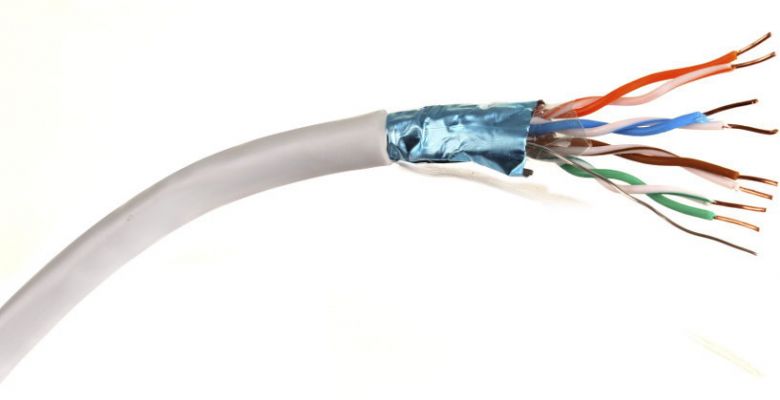

| Cable design | 4x2 |
| Wire diameter | 0,511mm |
| Perform live | copper wire [Cu] |
| Insulation | HDPE 1,02mm |
| Shield | aluminum foil |
| Coating thickness | 0,550mm |
| Outer diameter of the shell | 6,30mm PVC |
| Impedance 1-100MHz | 100 Ω |
| Max. resistance 1-100MHz | 9,5 (Ω/100m) |
| NVP | 69% |
| Delay Shew (ns/100m) | ≤45 |
| Colour | Gray |

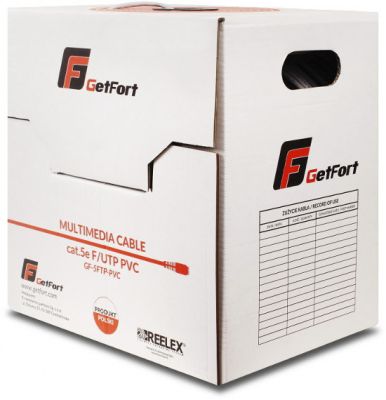

| Quality of package | 305m |

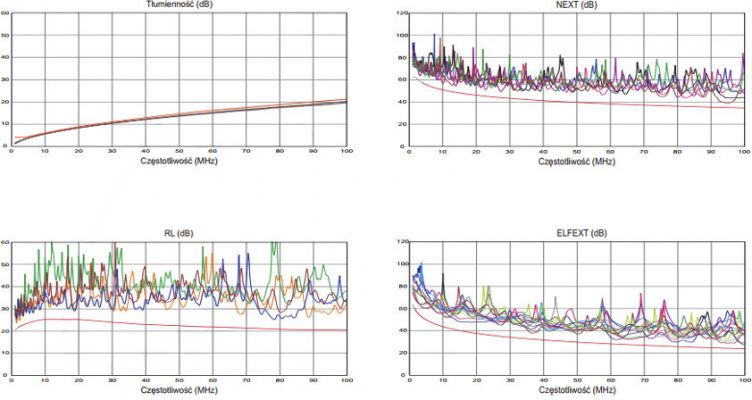

Transmission parameters | ||||||||||||||||
| Frequency Mhz | 1 | 4 | 10 | 16 | 20 | 30 | 45 | 60 | 80 | 100 | 120 | 130 | 155 | 175 | 200 | |
| Attenuation ≤ dB/100m | 2,1 | 4,0 | 6,3 | 8,0 | 9,0 | 11,2 | 13,9 | 16,2 | 18,9 | 21,3 | 23,6 | 24,7 | 27,2 | 29,2 | 31,5 | |
| NEXT ≥ dB/100m | 65,3 | 56,3 | 50,3 | 47,2 | 45,8 | 43,1 | 40,5 | 38,6 | 36,7 | 35,3 | 34,1 | 33,6 | 32,4 | 31,6 | 30,8 | |
| PS NEXT ≥ dB/100m | 62,3 | 53,3 | 47,3 | 44,2 | 42,8 | 40,1 | 37,5 | 35,6 | 33,8 | 32,3 | 31,1 | 30,6 | 29,5 | 28,6 | 27,8 | |
| ELFEXT ≥ dB/100m | 63,8 | 51,8 | 43,8 | 39,7 | 37,8 | 34,3 | 30,7 | 28,2 | 25,7 | 23,8 | 22,2 | 21,5 | 20,0 | 19,0 | 17,8 | |
| PS ELFEXT ≥ dB/100m | 60,8 | 48,8 | 40,8 | 36,7 | 34,8 | 31,3 | 27,7 | 25,2 | 22,7 | 20,8 | 19,2 | 18,5 | 17,0 | 16,0 | 14,8 | |
| RL ≥ dB | 20,0 | 23,0 | 25,0 | 25,0 | 25,0 | 23,8 | 22,5 | 21,7 | 20,8 | 20,1 | 19,5 | 19,3 | 18,8 | 18,4 | 18,0 | |
