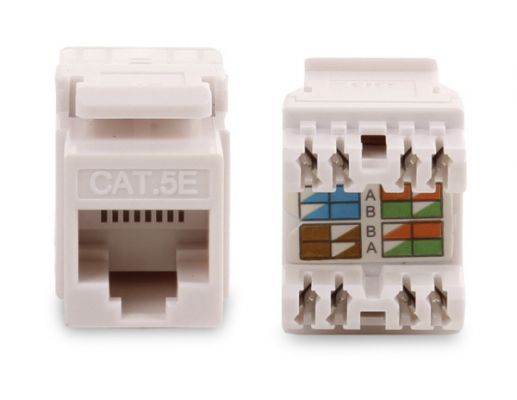

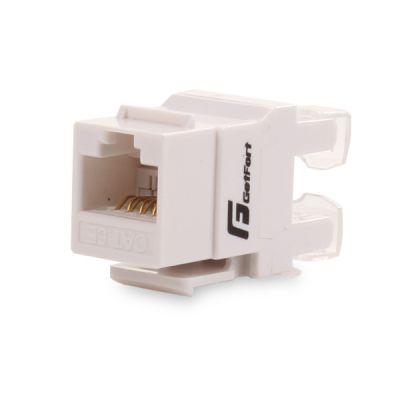

Keystone Cat.5E UTP module


Features

ModelGF-K5EUTP
Categories5e
ConstructionUTP

Description

The Keystone module is designed for building unshielded subscriber outlets and kat.5e patch points. The fixing allows easy assembly both in patch panels and wall boxes. The shape of the casing ensures minimal cable unbonding and makes assembly easier. Diaphragm joints are marked by a color coding to facilitate correct wiring installation. The clamping of the cable in the module is carried out using a dedicated impact tool also available in our offer. The latch on the slotted joints prevents the cables from unplugging automatically.



Categories5e
ShieldingNo
ConnectorDual IDC
Cable typeAWG23...AWG26
Max temporary current1,5A
Max temporary voltage150V
