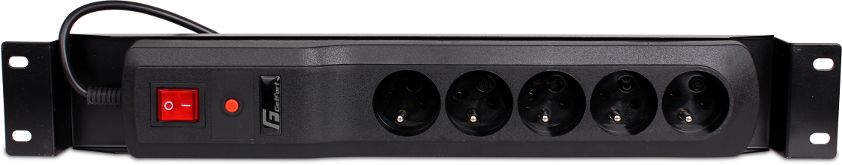

5R30/FRA rack power strip


Description

Power Strip 5R is a strip adapted for mounting in 19 "cabinets. It has been equipped with 5 grounded sockets and an automatic 10A fuse


The durable and rigid casing of the self-extinguishing plastic strip and metal reinforcement with the fixing system allow to qualify this model to the group of devices with professional use.

The automatic fuse allows you to restore the system in a short time.

Technical Specifications
Rated voltage ~ 230V
Frequency 50 Hz
Rated current load 10A (2300W)
The leakage current is 0.5mA
Response time <25ns
Maximum unloading current 10kA - 8/20 μs
Automatic fuse fuses with 10A / 250V delay characteristics
Shock protection system, protective pins of sockets connected with a protective conductor
Number of sockets 5
Plug PN-E-93203 type 2P + ground
Illuminated switch, bipolar
Plastic housing, self-extinguishing
Housing color black
3m cable lengths
Dimensions (mm) LxWxH 480x70x55
Net weight (g) without cable 690
